Part Design & Molds Designs

At UCANMOULD we work with a team of well trained experienced designers for designing new parts/ articles as per the customs requirements. For this we require rough sketches along with dimensional measures or samples to prepare 2d and 3d drawings before planning the Molds designs.

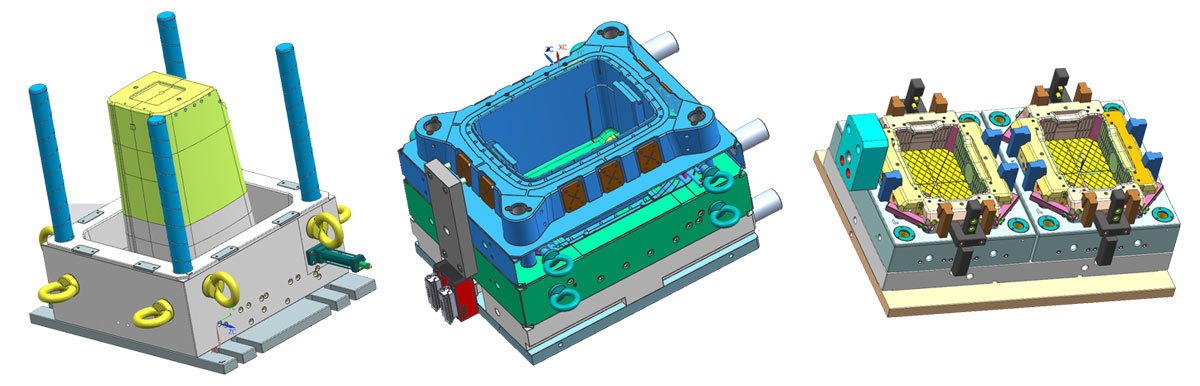

Once the part drawings are confirmed our engineers work out a customised solution after studying the product material, Molds flow, desired strength of the article, weights and the desired production. The steel, Molds structure, relevant Molds design is planned and verified with the customer after which the Molds drawings and assembly drawings are prepared. With advanced CAD/CAM/CAE systems such as Pro-Engineer, Solid works, Unigraphics, Master CAM, Mold Flow, Auto CAD, in mold design we can offer drawings in latest formats. Usually we require 3 working days for providing the Molds drawings for approval.
